Recording and analysing audio with Python

These examples bring together audio recording, playback and analysis in Python. The code covers loading audio, examining sample data, plotting waveforms and generating spectrograms with Librosa and Matplotlib.

GitHub: Python/Audio Recorder

Source Code: Python/Audio Recorder/record audio.ipynb

import os
import librosa
import librosa.display
import matplotlib.pyplot as plt
import warnings
import numpy as np
warnings.filterwarnings("ignore", category=RuntimeWarning)

def load_audio(file_path, duration=None, offset=0):
    audio_data, sample_rate = librosa.load(file_path, duration=duration, offset=offset)
    return audio_data, sample_rate

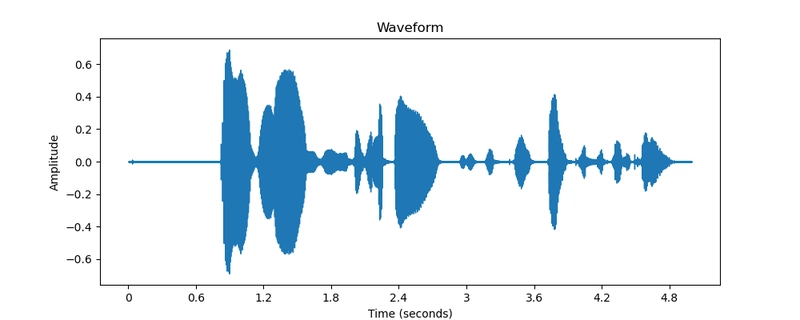

def plot_waveform(audio_data, sample_rate, output_path):
    plt.figure(figsize=(10, 4))
    librosa.display.waveshow(audio_data, sr=sample_rate)
    plt.title("Waveform")
    plt.xlabel("Time (seconds)")
    plt.ylabel("Amplitude")
    plt.savefig(os.path.join(output_path, "waveform.png"))
    plt.show()
    plt.close()

def plot_spectrogram(audio_data, sample_rate, output_path):
    plt.figure(figsize=(10, 4))
    spectrogram = librosa.feature.melspectrogram(y=audio_data, sr=sample_rate)
    librosa.display.specshow(librosa.power_to_db(spectrogram, ref=np.max), y_axis='mel', x_axis='time')
    plt.colorbar(format='%+2.0f dB')
    plt.title("Spectrogram")
    plt.savefig(os.path.join(output_path, "spectrogram.png"))
    plt.show()
    plt.close()

if __name__ == "__main__":
    input_file = "recorded_voice_sounddevice.wav"
    output_path = "."  # You can change this to the desired output directory

    audio_data, sample_rate = load_audio(input_file)

    # Print some information about the audio file
    print(f"Audio data shape: {audio_data.shape}")
    print(f"Sample rate: {sample_rate} Hz")

    # Plot the audio waveform and spectrogram
    plot_waveform(audio_data, sample_rate, output_path)
    plot_spectrogram(audio_data, sample_rate, output_path)

    print("Plots saved as 'waveform.png' and 'spectrogram.png' in the current directory.")
